03165 IG

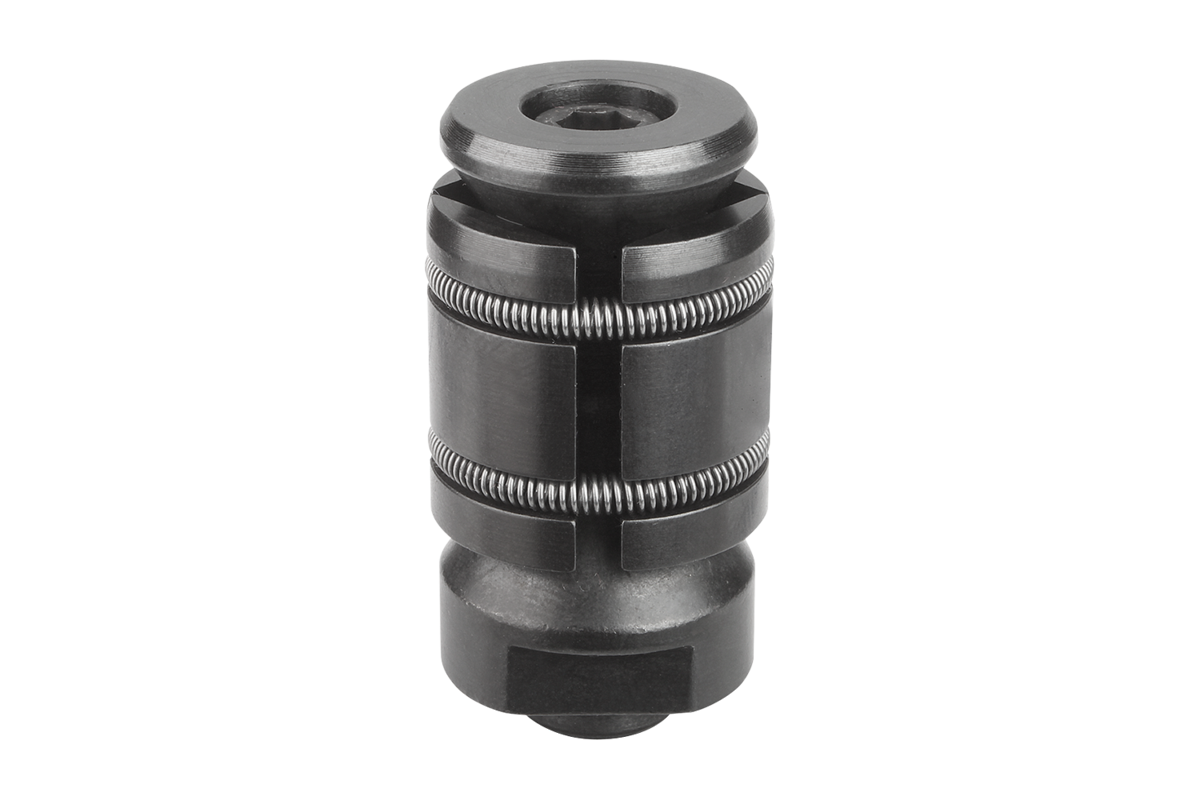

Centring clamps with internal threads

  • Workpiece clamping with positive down force
  • Centring and clamping in a workpiece borehole
  • Long travel
Special features:

from kr529.25

plus sales tax

drawing

Description

Material
Body steel.
Bushes carbon steel.
Version
Black oxidised.
Note
These centring clamps enable workpieces to be centred on and lightly clamped in a bore. The clamps have a wide expansion range. The series covers a bore range of Ø12 to Ø30 mm. To increase the centring accuracy the clamps with internal thread have a centring spigot (D2) for a locating hole. The centring accuracy is ±0.2 mm.

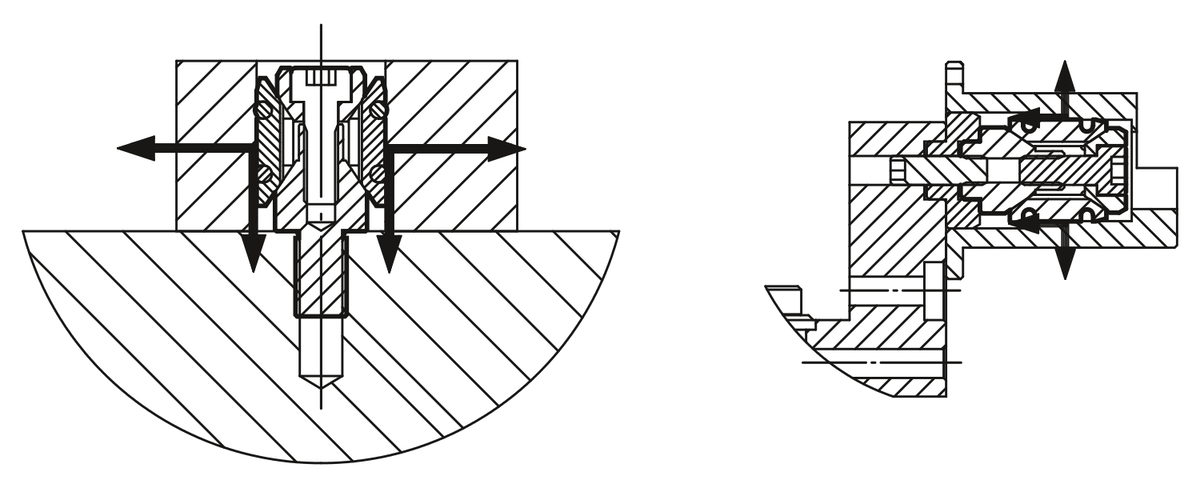

Centring clamps with female threads fit on M6 grid systems (see illustration).
