03425

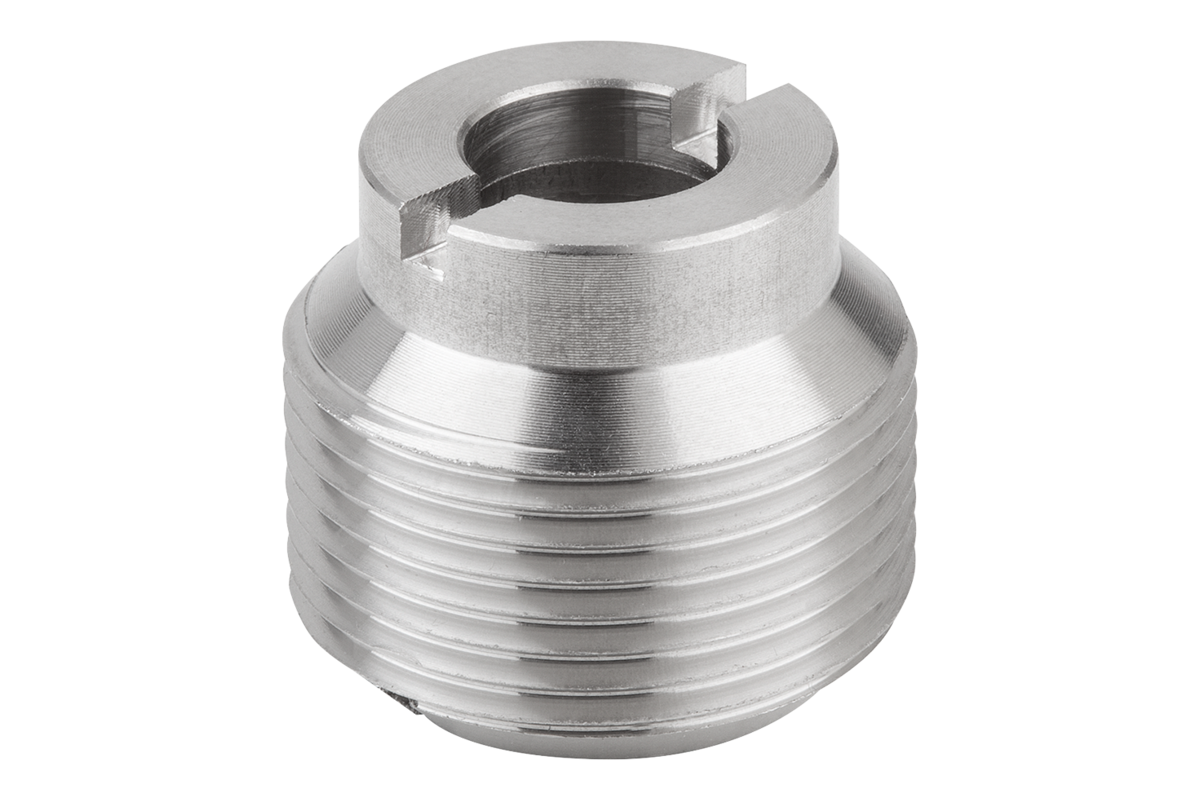

Adapter Bush

stainless steel

bright

  • Easy and quick positioning of ball lock pins with head-end lock
  • Adapter bushes can be used from both sides
  • Additional centring
Special features:
Item number:
03425-11024

kr75.15

plus sales tax
Item number:
03425-11024
Designation
Adapter Bush
Body material
stainless steel
Body surface finish
bright
Steel code
1.4305
D1=Thread
M24X1,5
D=Diameter
10
D2
13
D3
18
L
21,5
L3
5
L4
3,5
L5
9
N
2,5
T
2,5
Weight
40.8 G

Description

Material
Stainless steel 1.4305.
Version
Bright.

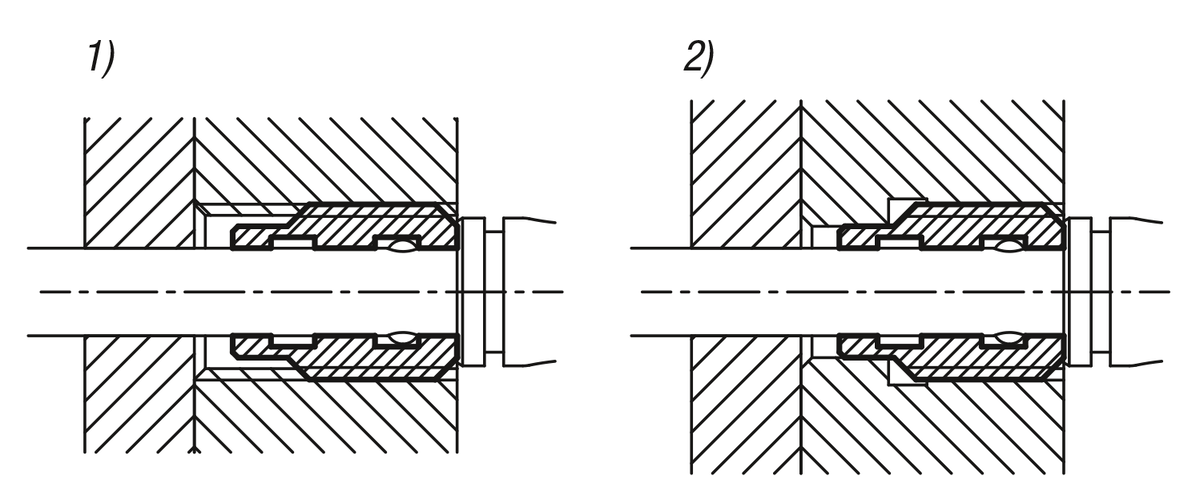

Drawing reference
1) without centring
2) with centring
Advantages
The adapter bushes can be used from both sides.
Additional centring of the adapter bush is provided by the centring collar (D3).
Note

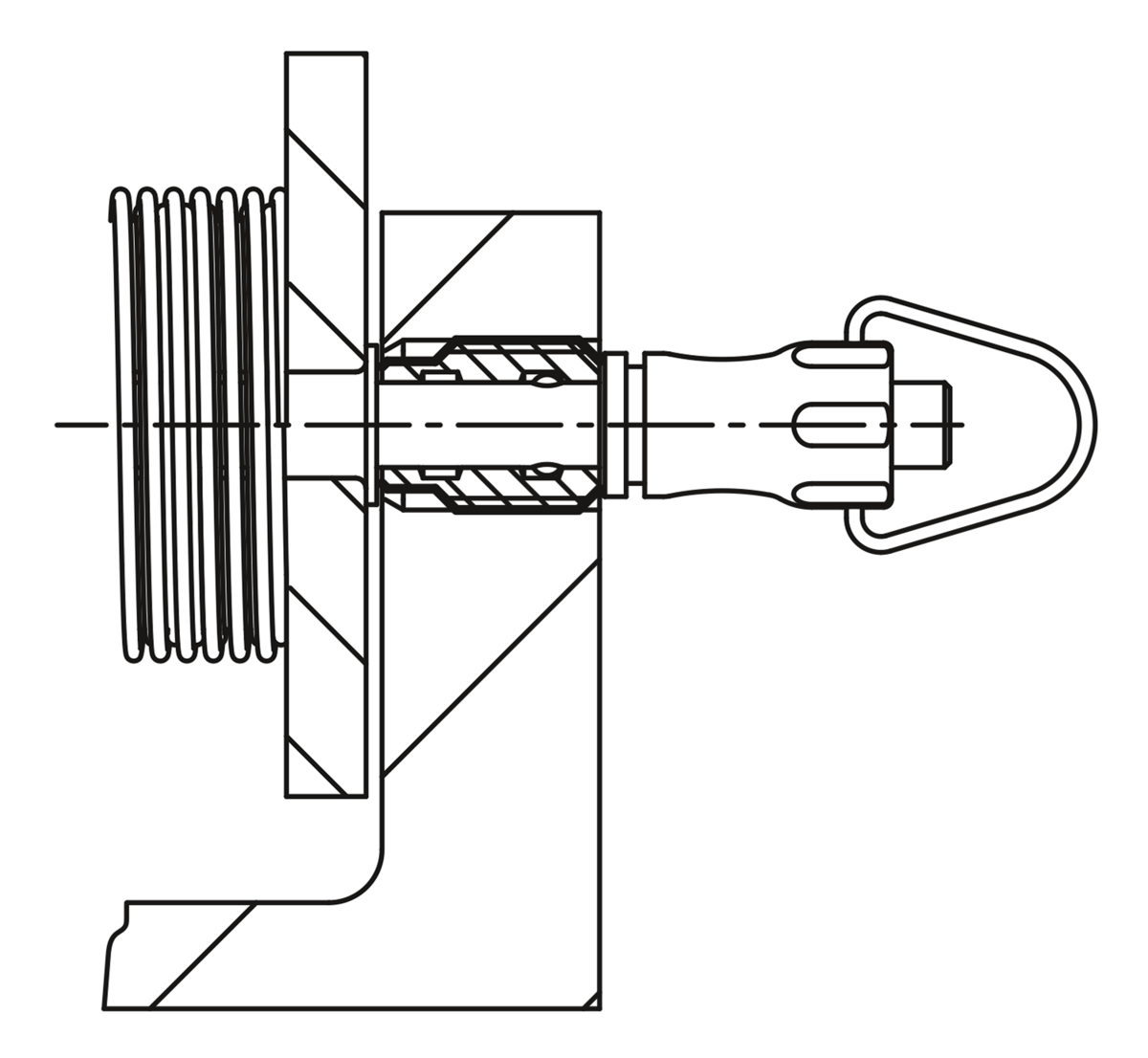

The locating bushes are ideal for easy and quick positioning of ball lock pins with head-end lock.
