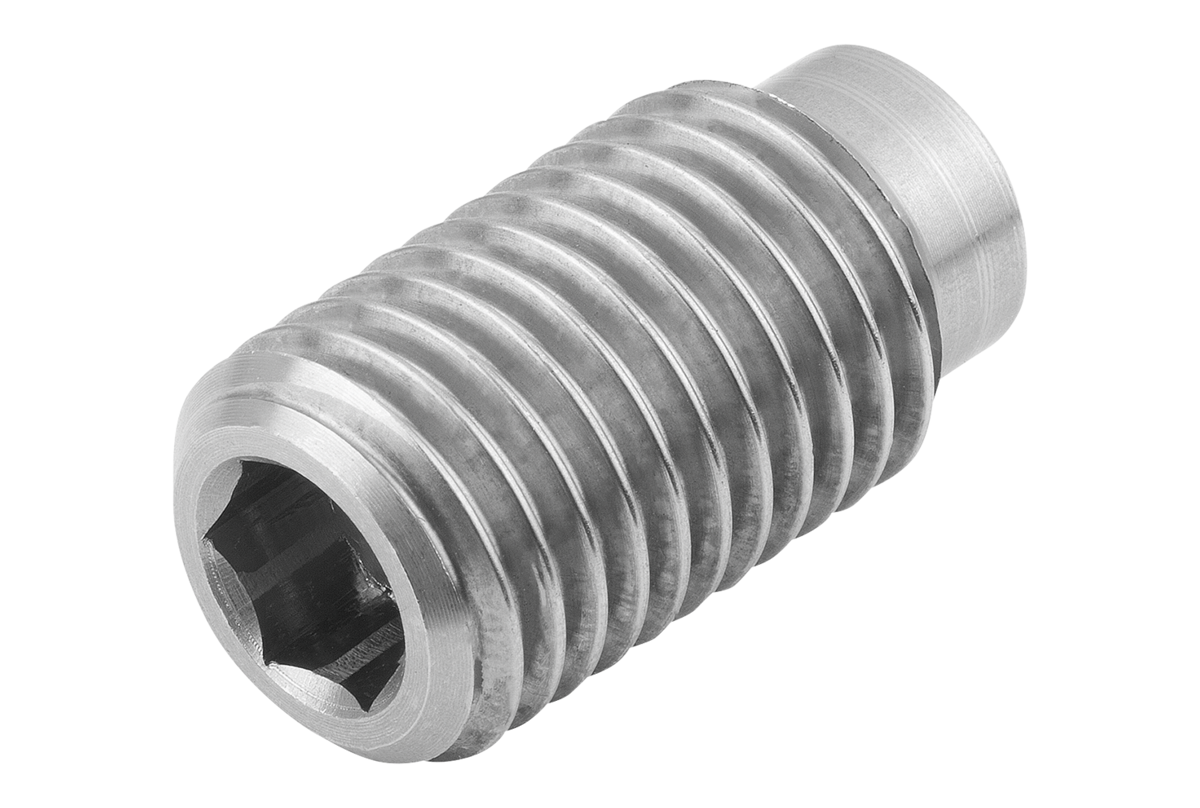

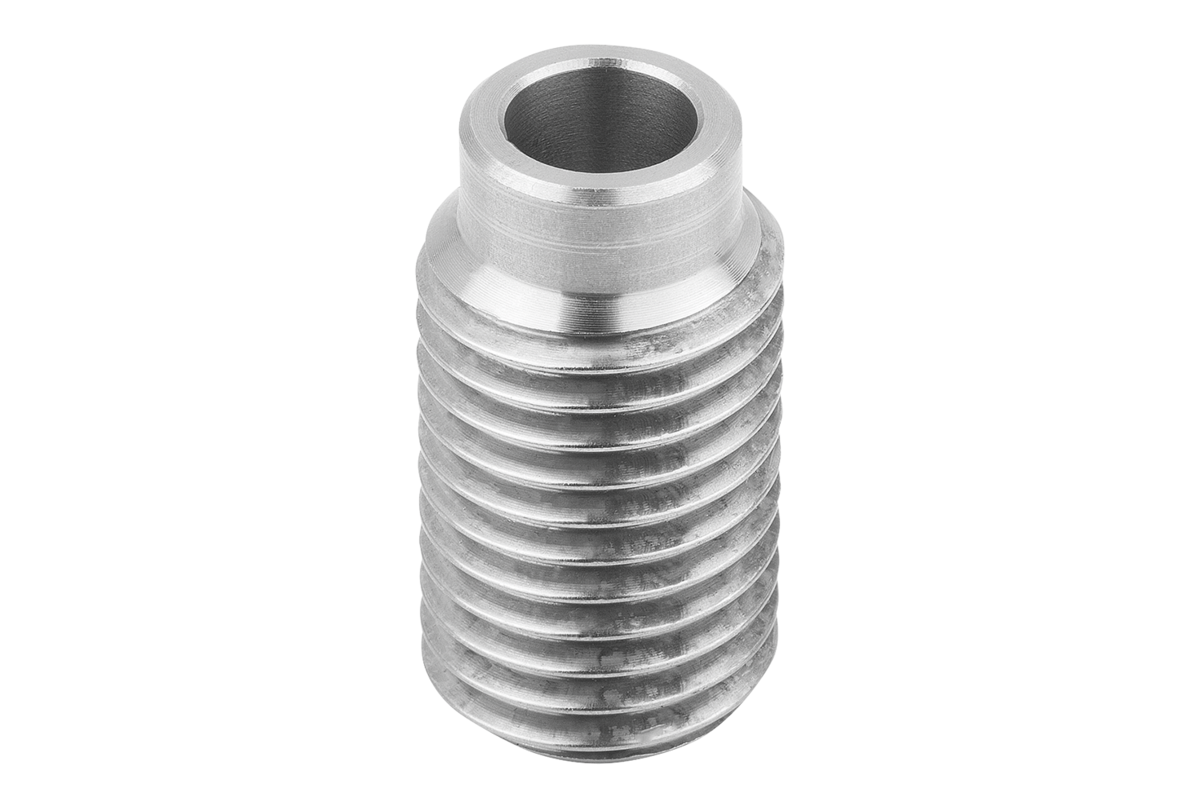

Designation
Locating bush
Main material
stainless steel
D1=Thread
M24
D=diameter
12
D2
15
D3
18
L
35
L3
6
L4
8
L5
7
SW
12
T
6
~ CONFLICT MINERALS 3TG status
no intentional 3TG
~ CP65 substance 2 cancer
nickel (metallic)
~ PFAS free?
yes
~ REACH SVHC-free?
yes
~ RoHS conformity
yes, without exemption
~ TSCA 6(H) conformity
yes

Description

Material

Stainless steel 1.4305.

Version
Bright.
Note
These locating bushes are ideal for easy and quick positioning of ball lock pins and locking pins.
Advantages
- centred by the centring collar.
- easy and reliable installation.
- can be screwed into various materials.
- usable both sides
In order to download our CAD models, you must log in first. If you have not created an account yet, please register under "My Account" (right side of the screen) and follow the instructions.
