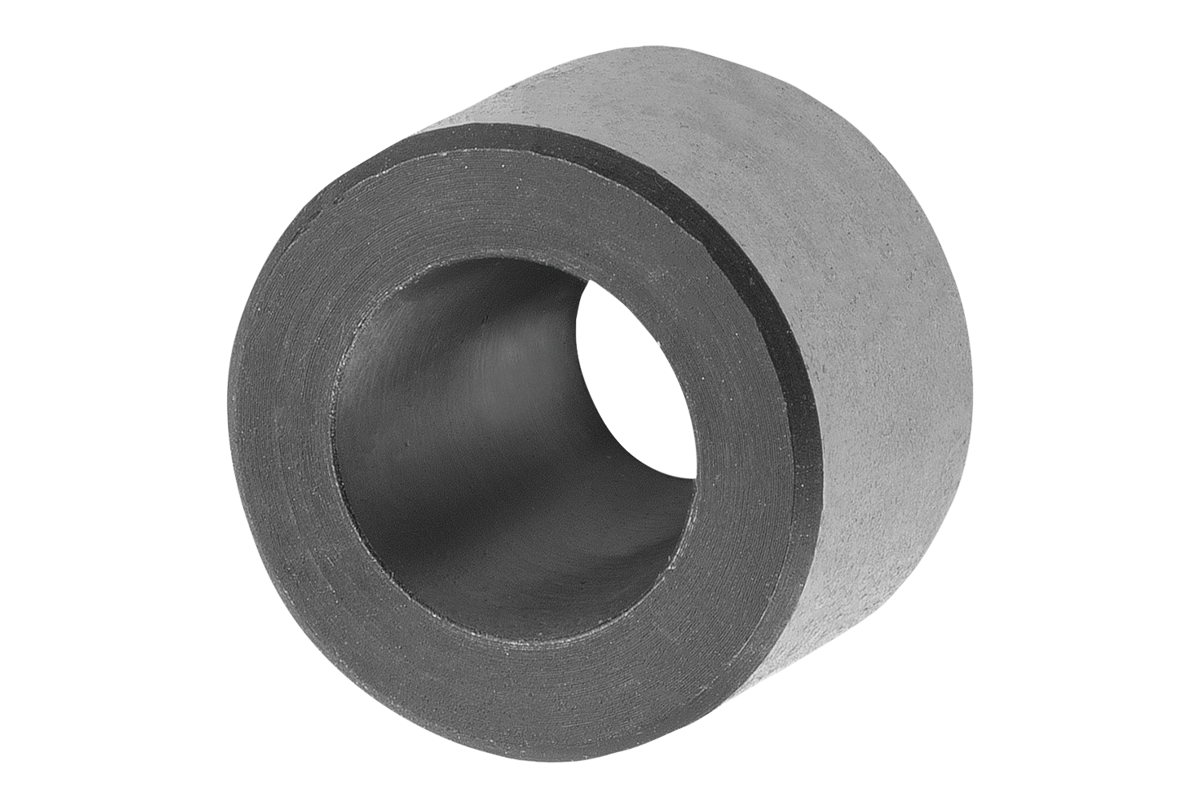

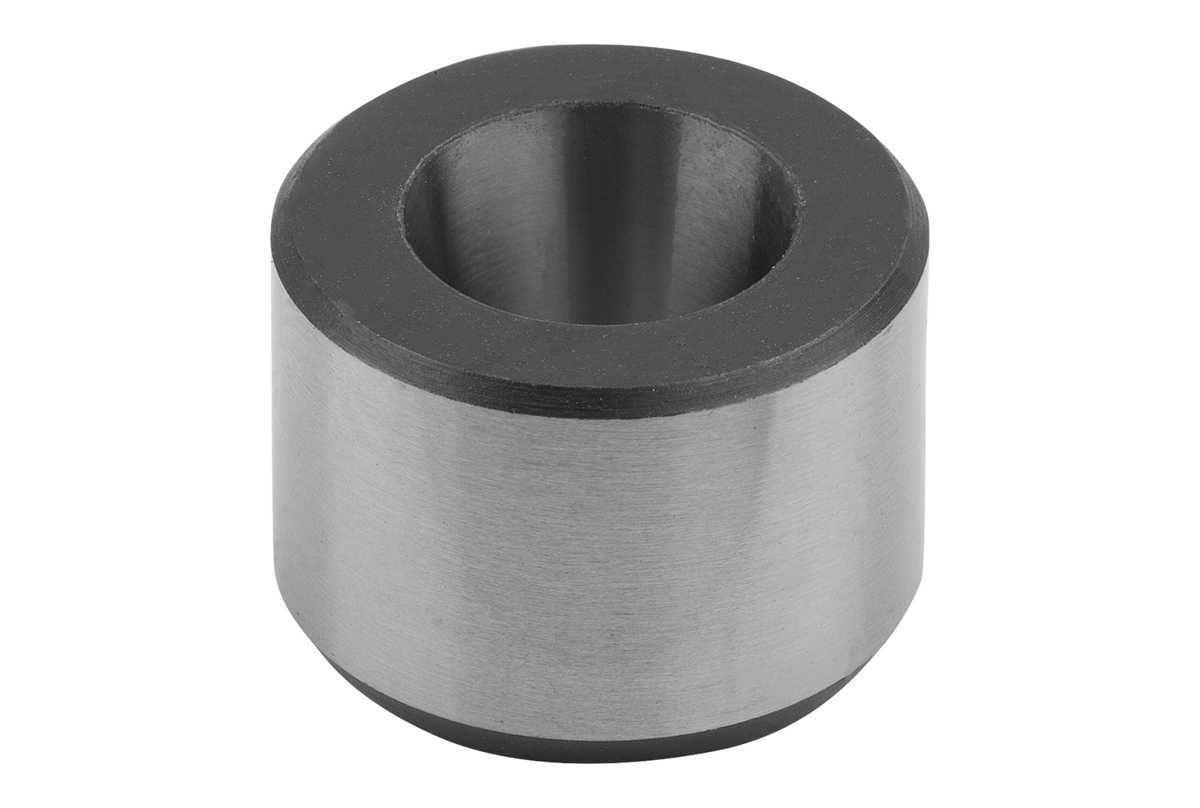

00308903 BUSH CNL S1 D1=8 D=5 ST HGBO
00308903 BUSH CNL S1 D1=8 D=5 ST HGBO
03089

Bush

conical

steel

hardened, ground and black oxidised

  • Accessories for indexing plunger with tapered indexing pin
  • High precision
Special features:
Datasheet
Item number:
03089-9105

kr75.62

plus sales tax
plus shipping costs
Details
Item number:
03089-9105
Designation
Bush
Size
1
Version 1
conical
Body material
steel
Body surface finish
hardened, ground and black oxidised
D1=Thread
8
D=Locking pin diameter
5
L
6
Weight
1.66 G

Description

Material
Steel or 1.4034 stainless steel.
Version
Steel version:
black oxidised, hardened and ground.
Stainless steel version:
bright, hardened and ground.
Assembly
To increase the coaxial alignment accuracy, the holes for the bush and the premium indexing plunger can be machined simultaniously.
