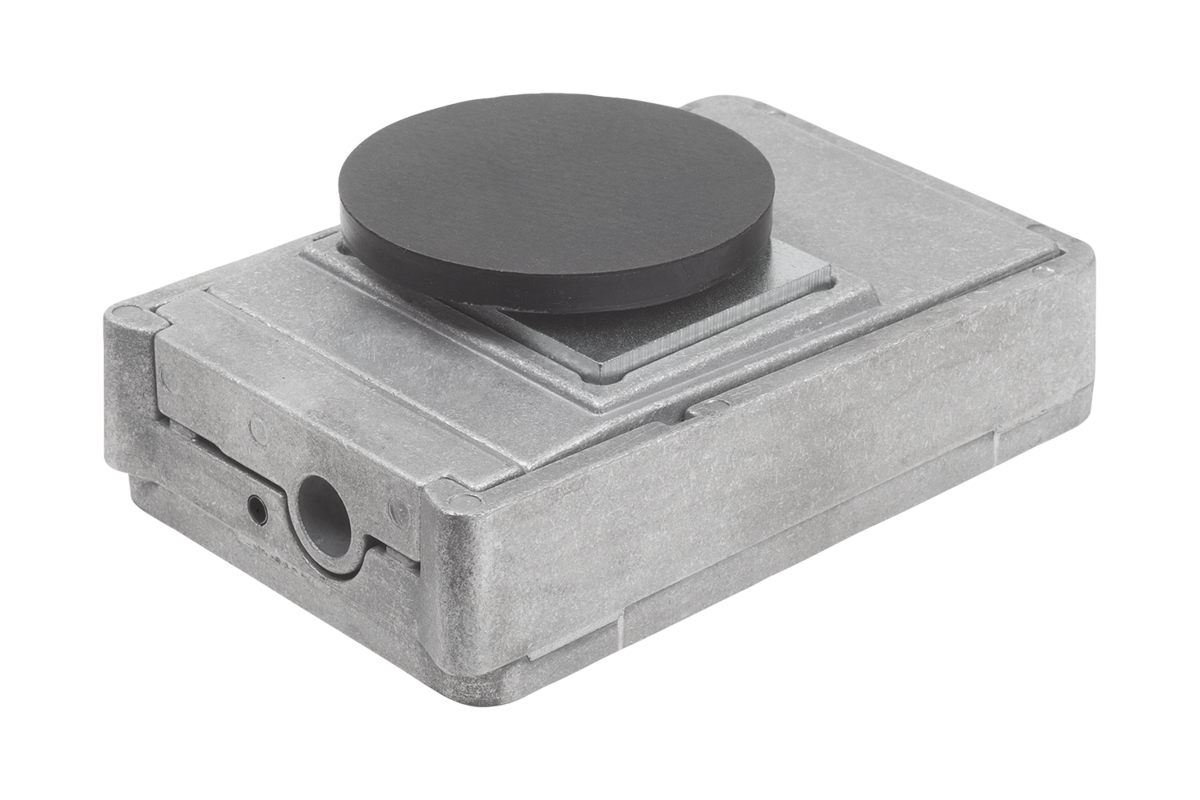

Levelling wedge
free-standing
aluminium
- Spacious support surface
- Millimetre-precise fine adjustment
- Continuous insulation
- Non-slip
- Aluminium housing
kr974.51
plus sales tax
Added to your shopping cart
Designation
Levelling wedge
Version 1
free-standing
Body material
aluminium
Component material
nitrile rubber
DM=Torque on setscrew
35
FV=Fine adjustment (mm)
7
HV=Height adjustment per rotat
0,275
VB=Adjustable load (kN)
70
Description
Material
Housing aluminium, support surface nitrile rubber.
Version
Free-standing.
Note
The low non-slip levelling wedges are suitable for loads of up to 7 tonnes. The spherical, vulcanised nitrile rubber support surface with a hardness of Shore 80 (1) can compensate for any unevenness.
The vulcanised Shore 80 nitrile rubber anti-slip face (1) provides permanent insulation from vibrations, noise, and corrosive media.
The vulcanised Shore 80 nitrile rubber anti-slip face (1) provides permanent insulation from vibrations, noise, and corrosive media.
