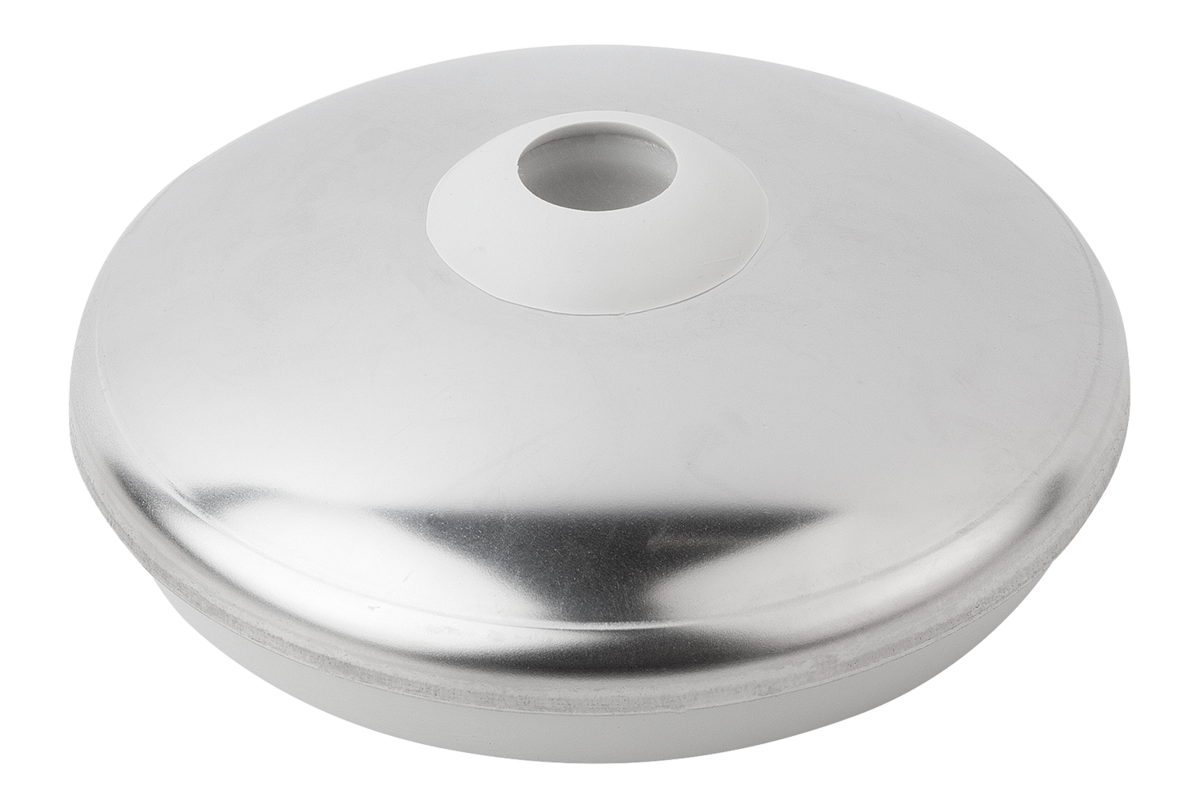

Item
Plate
Version 1
anti-slip plate
Main material
stainless steel
D=plate diameter
58,5
H=Height
29
Load rating max. kN
7
RoHS
true

Description

Material

Plates, stainless steel 1.4301.

Core, thermoplastic PA.

Rubber support TPE.

Version
Plate bright.

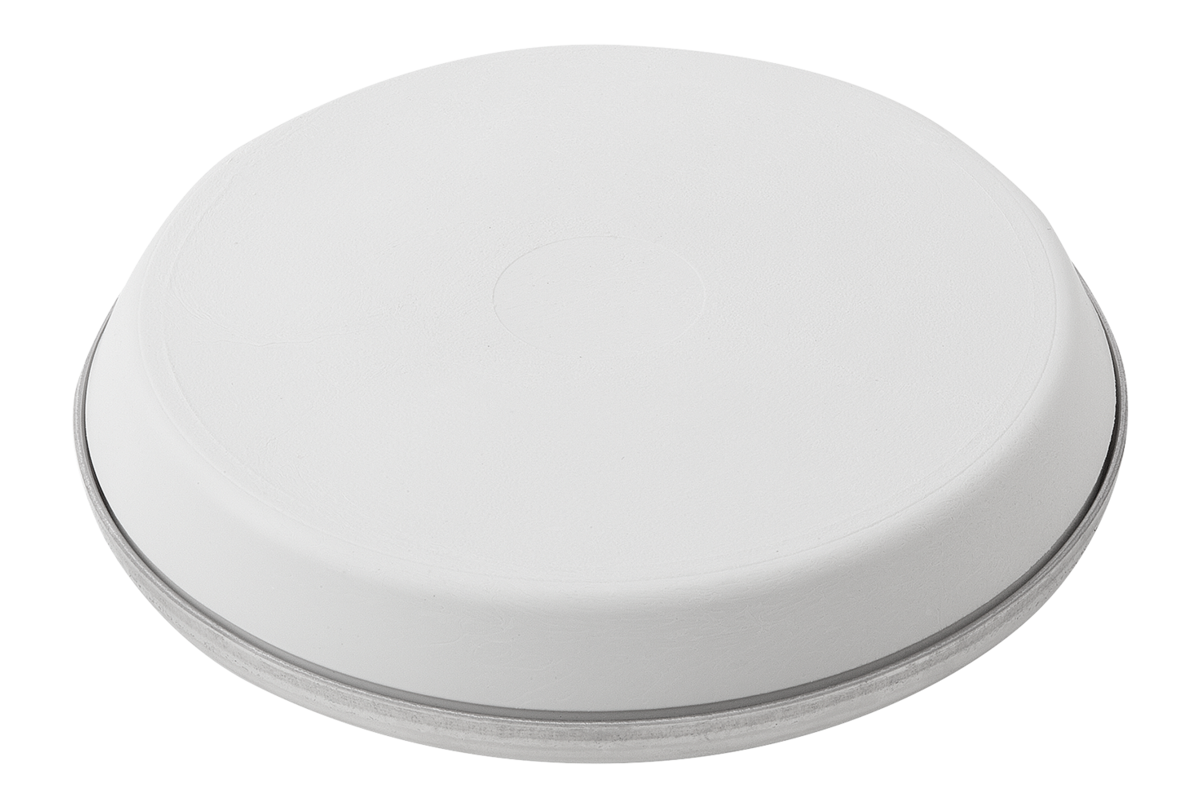

Rubber support light grey with sealing lip, hardness 70 Shore A.
Temp. range -20°C to +100°C.
Note
The rubber support is joined with the stainless steel plate and the PA core by injection moulding. The rubber support is resistant to oil and water (up to 60 °C). In addition, it is furnished with antibacterial and antimicrobial protection and is thus outstandingly suited for sectors in the foods industry.

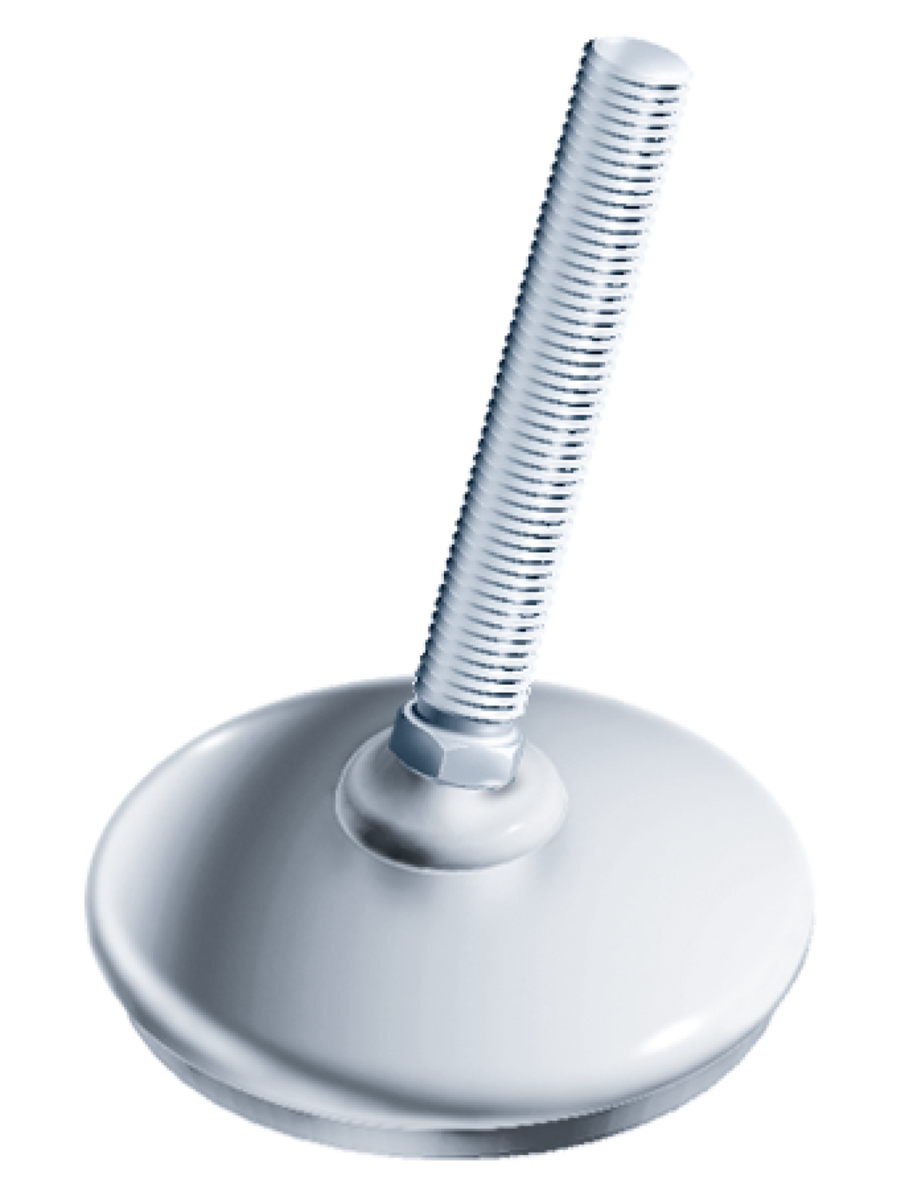

Swivel feet consist of a plate and a threaded spindle or ball joint. Any plate can be combined with any threaded spindle or ball joint.
For matching threaded spindles see 27810.
For matching ball joints see 27811.
Drawing reference
1) PA-core
2) rubber base
In order to download our CAD models, you must log in first. If you have not created an account yet, please register under "My Account" (right side of the screen) and follow the instructions.
