03020

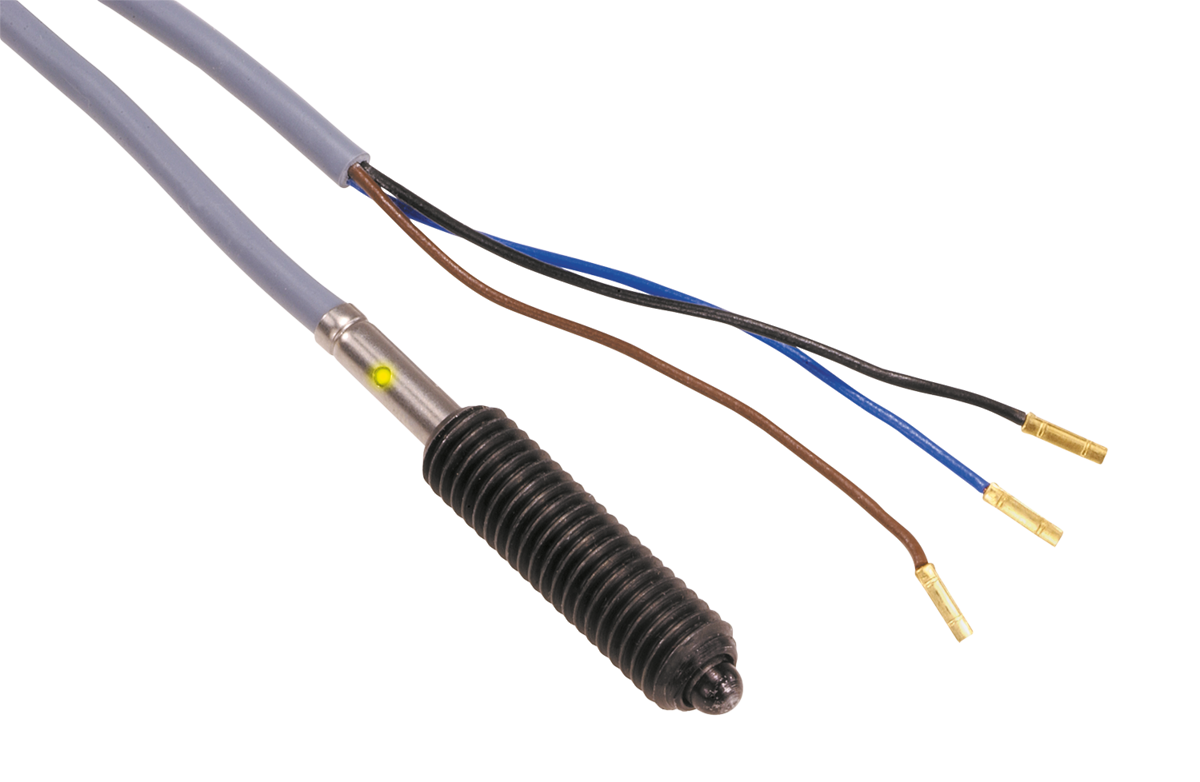

Spring plungers with status sensor

6 Products

Description

Material
Sleeve, thrust pin and spring steel.
Inductive proximity switch.
Version
Black oxidised.
Thrust pin hardened.
Note
An electrical control signal can be sent via the built-in end switch.
Voltage: U = 10 – 30 V DC
Current: I max. = 200 mA
Temperature range: -25 °C – +70 °C
Protection class: IP 67
Safety
Spring plungers with status sensor are not suitable for personal protection.
Drawing reference
3) cable Ø 3.5 mm; length ca. 2 m
4) LED-indicator

BN = brown
BK = black
BU = blue

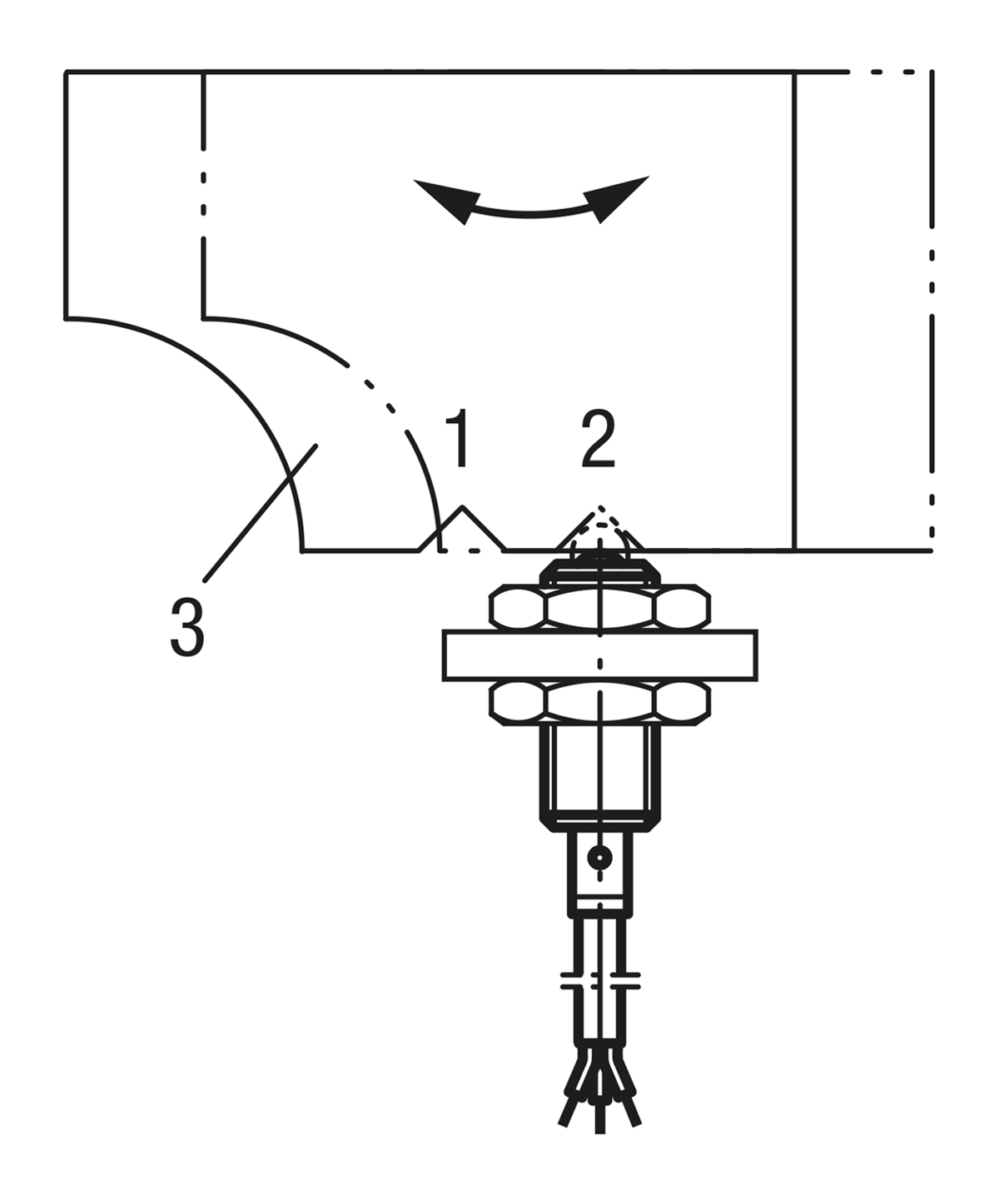

Example of position feedback:
Pos. 1: slide engaged
Pos. 2: slide disengaged
