03099 BD

Indexing plungers with grip, Form B and D

  • Can be used for all types of locking and fixating
  • The lock is released by turning the grip 180°
  • Indexing notch for holding the position
  • Indexing pin hardened
Special features:

from kr90.82

plus sales tax
  • 1(current)
  • 2
48 Products
  • 1(current)
  • 2

drawing

Description

Material
Steel grade 5.8.
Version
Black oxidised.
Pin hardened and ground.
Note
Cam-action indexing plungers are used when the indexing pin should not project all the time. Turning the handle through 180° retracts the pin and a notch ensures that the handle remains in this position.
Drawing reference

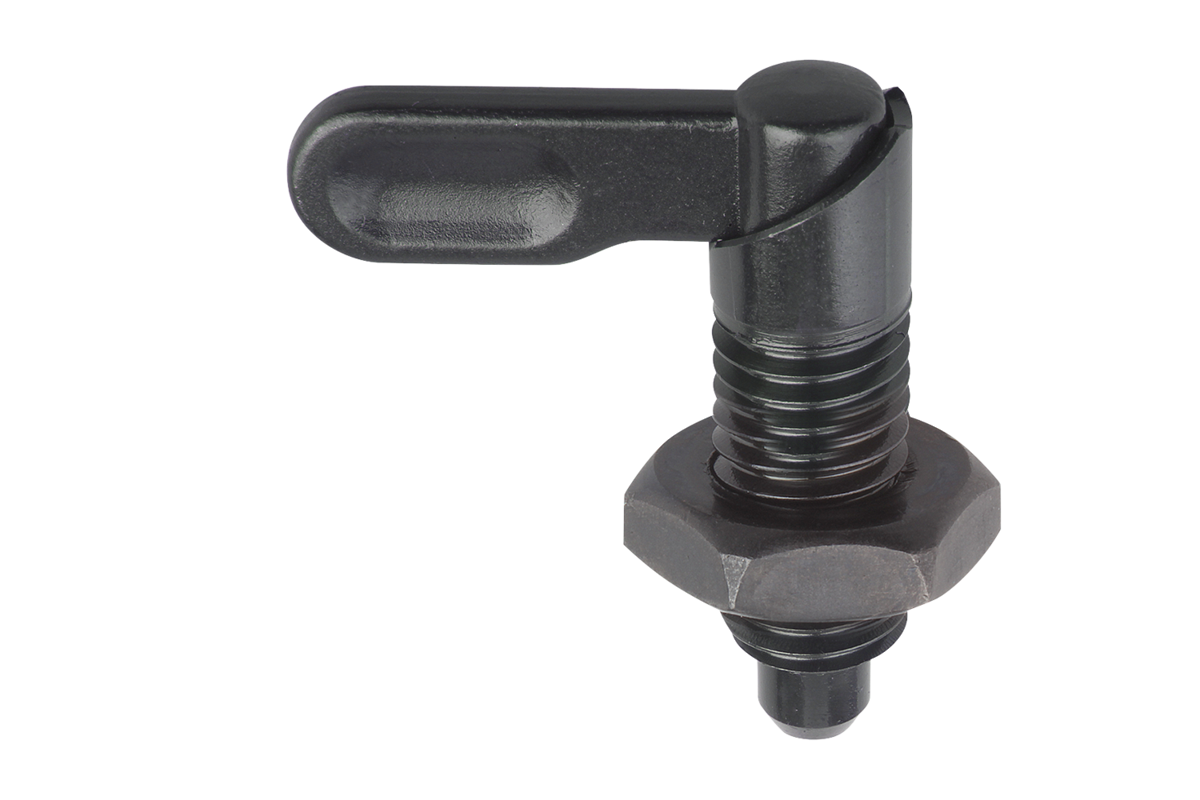

Form B: grip uncoated with nut

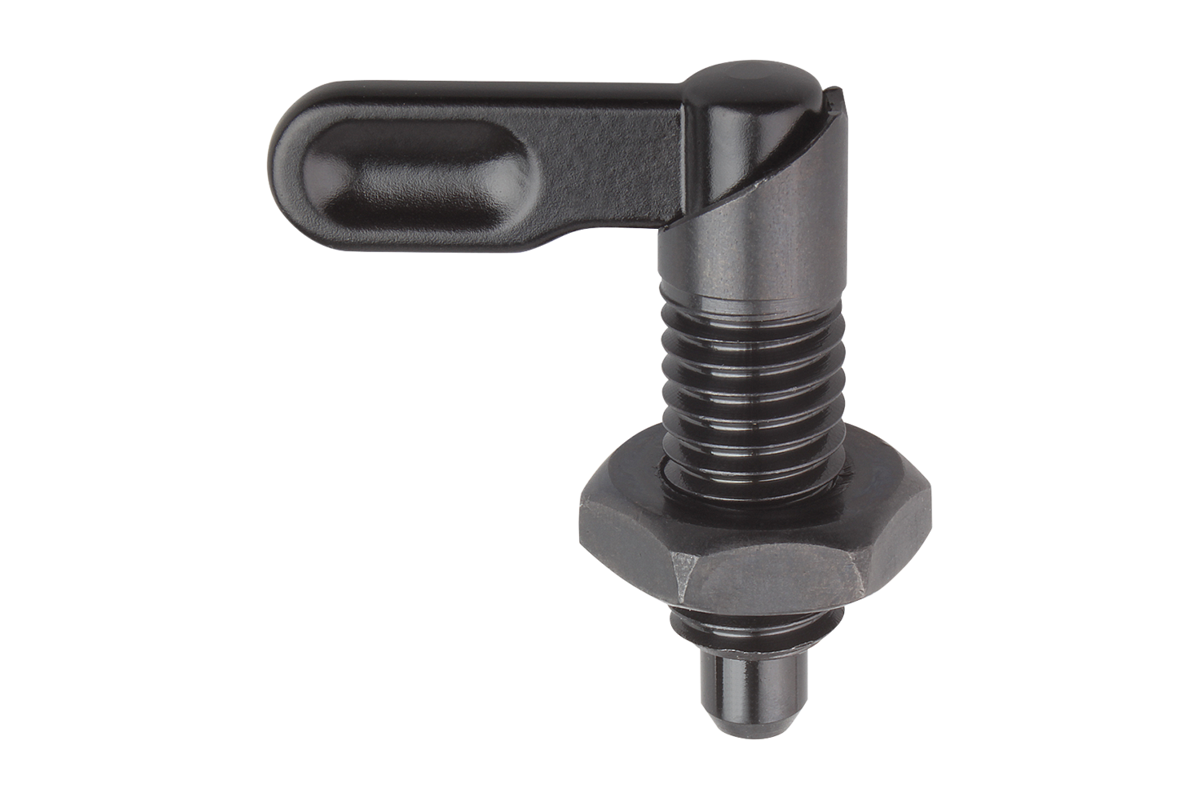

Form D: grip powder-coated with nut
