02002 P

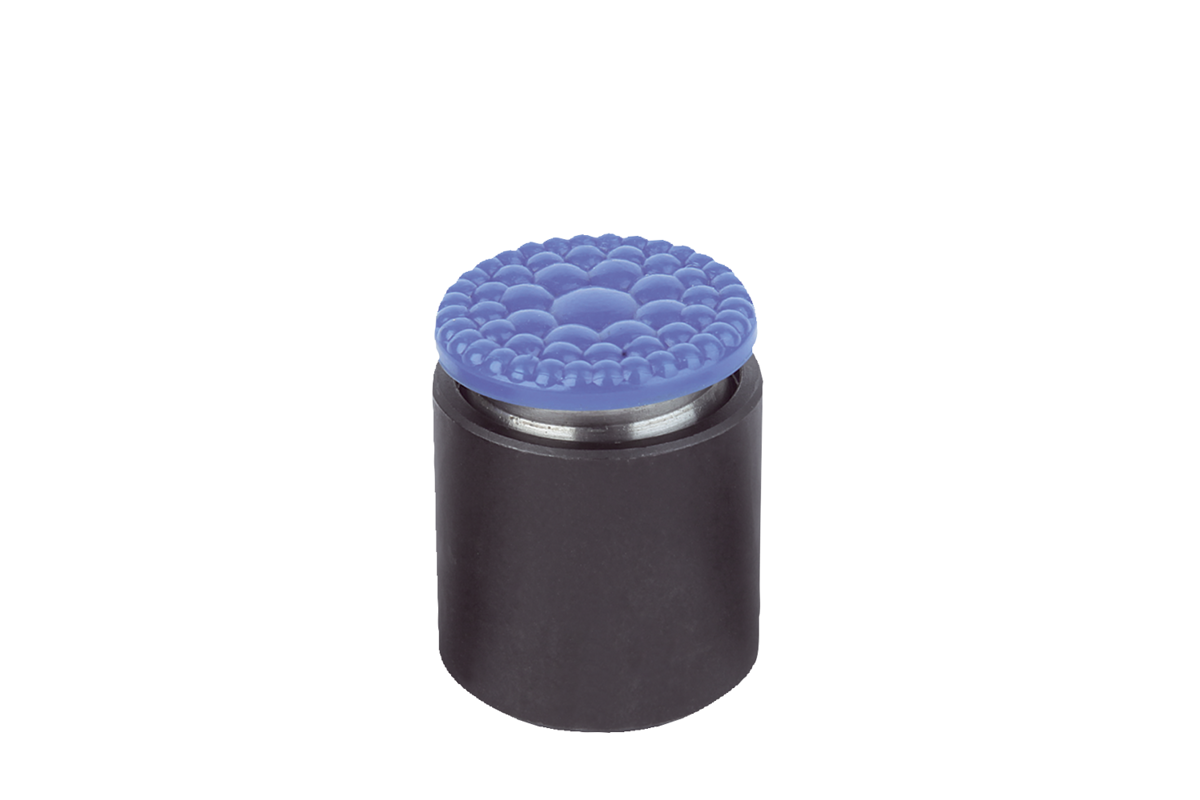

Self-aligning pads with O-ring, Form P, stainless steel ball with polyurethane face

  • Serve as supports, stops and thrust pads
  • Application sectors: machine and fixture construction, assembly
  • Form P: optimum protection against damage to sensitive surfaces
  • O-ring for protection against dirt and foreign particles
Special features:

from kr339.83

plus sales tax
7 Products

drawing

Description

Material
Body carbon steel.
Ball:
Form P stainless steel with polyurethane surface.
Version
Body tempered and black oxidised.
Ball:
Form P polyurethane, Shore hardness 60°.
Note
The self-aligning pads are used to support and clamp unmachined and machined workpieces.
In addition, they serve as stops, supports and pressure pieces in fixtures and toolmaking.

Ball secured against rotation.

Form P: The polyurethane surface is permanently vulcanised on the ball. It is abrasion-resistant and does not discolour. Offers optimum protection against damage to delicate surfaces. The pearl-like surface gives a firm grip and allows air to escape so as to prevent any suction effect between the contact surface and the self-aligning pads.
Advantages
The built-in O-ring holds the ball in place and keeps dirt and foreign particles out ensuring smooth and even movement.
