02006 P

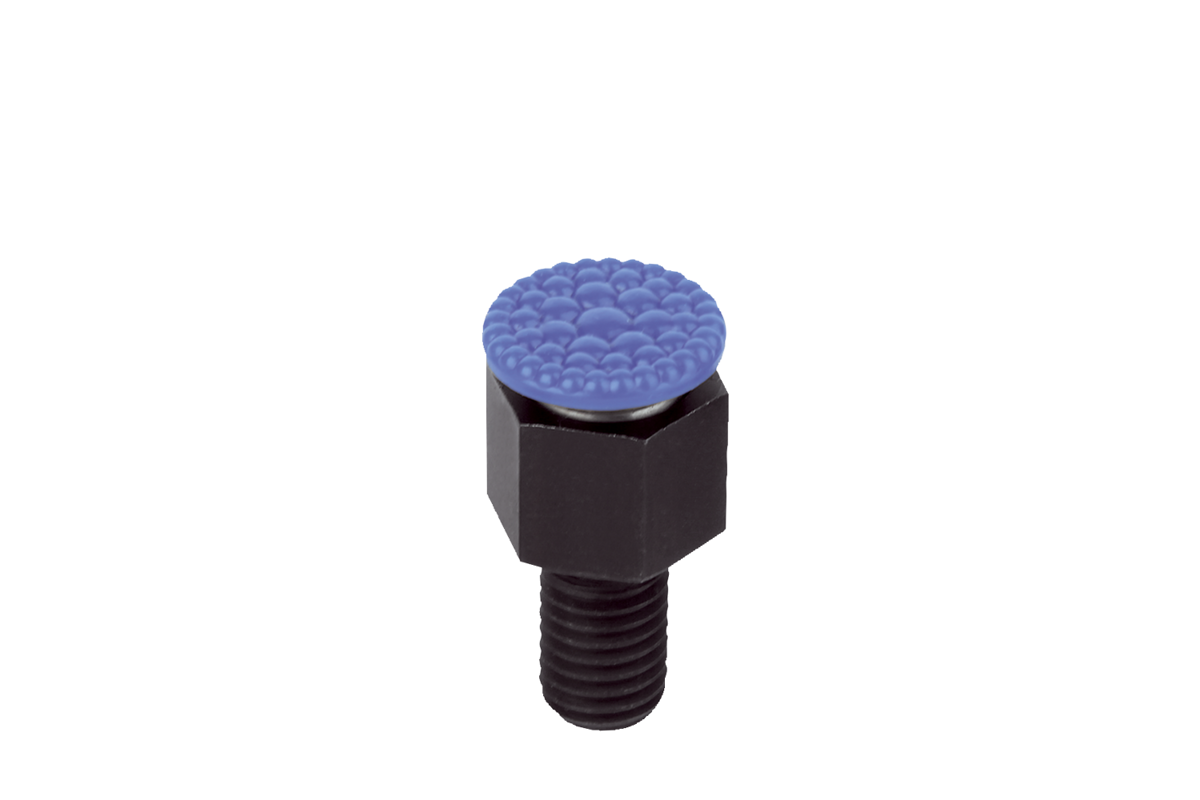

Self-aligning pads, adjustable, with O-ring, Form P, stainless steel ball with polyurethane face

  • Serve as supports, stops and thrust pads
  • Application sectors: machine and fixture construction, assembly
  • Form P: optimum protection against damage to sensitive surfaces
  • O-ring for protection against dirt and foreign particles
Special features:

from kr392.71

plus sales tax
15 Products

drawing

Description

Material
Body carbon steel.
Ball:
Form P stainless steel with polyurethane surface.
Version
Body tempered, black oxidised.
Ball:
Form P polyurethane, Shore hardness 60°.
Note
The self-aligning pads are used to support and clamp unmachined and machined workpieces.
In addition, they serve as stops, supports and pressure pieces in fixtures and toolmaking.

Ball secured against rotation.

Form O: The abrasive diamond surface is bonded firmly to the ball. It is ideally suited to supporting smooth or slippery applications with a minimum of clamping pressure. This allows the diamond particles to get a firm grip on a very small area with minimum damage to the surface.
The diamond surface offers excellent wear resistance.
Advantages
The built-in O-ring holds the ball in place and keeps dirt and foreign particles out, ensuring uniform movement.
