{"product":{"productId":"agid.22620","price":16393.85,"name":"Interchangeable subplates, grey cast iron with grid holes"},"currency":"SEK"}
Material
GJL 300.
Version
Mounting surfaces ground
Show more
Show less
Description
Material
GJL 300.
Version
Mounting surfaces ground
Note

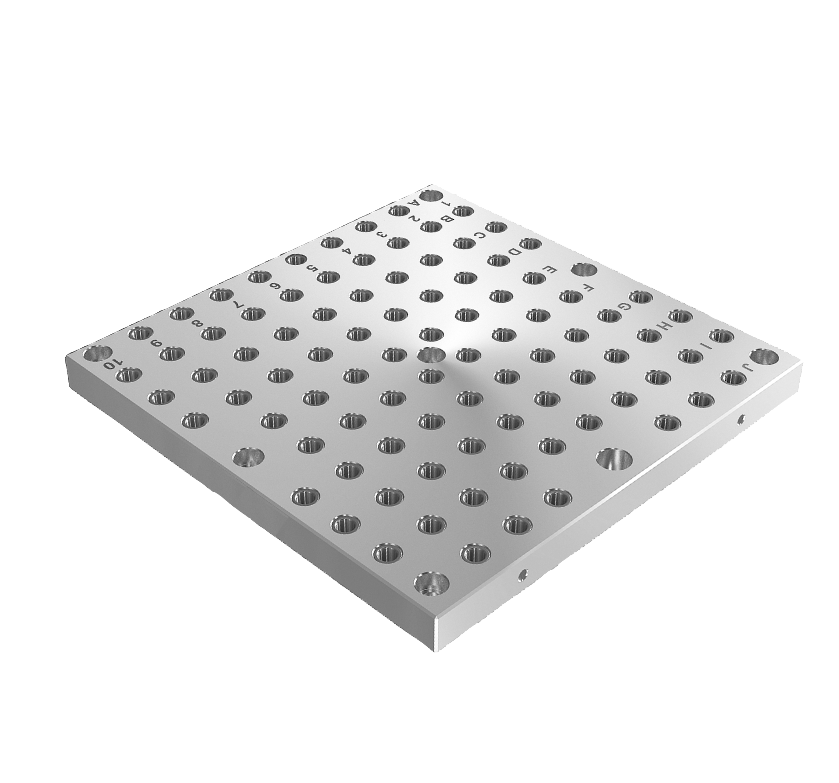

Interchangeable subplates with grid holes are used double-sided, together with the tombstones. The interchangeable subplates are positioned and mounted on both sides of the tombstone. This means that clamping fixtures can be replaced efficiently.
The alphanumerically labelled grid holes mean that the clamping elements can be assigned in a defined manner in the event of repeat setups.
Please order protection plugs to plug unused grid holes separately.
The alphanumerically labelled grid holes mean that the clamping elements can be assigned in a defined manner in the event of repeat setups.
Please order protection plugs to plug unused grid holes separately.

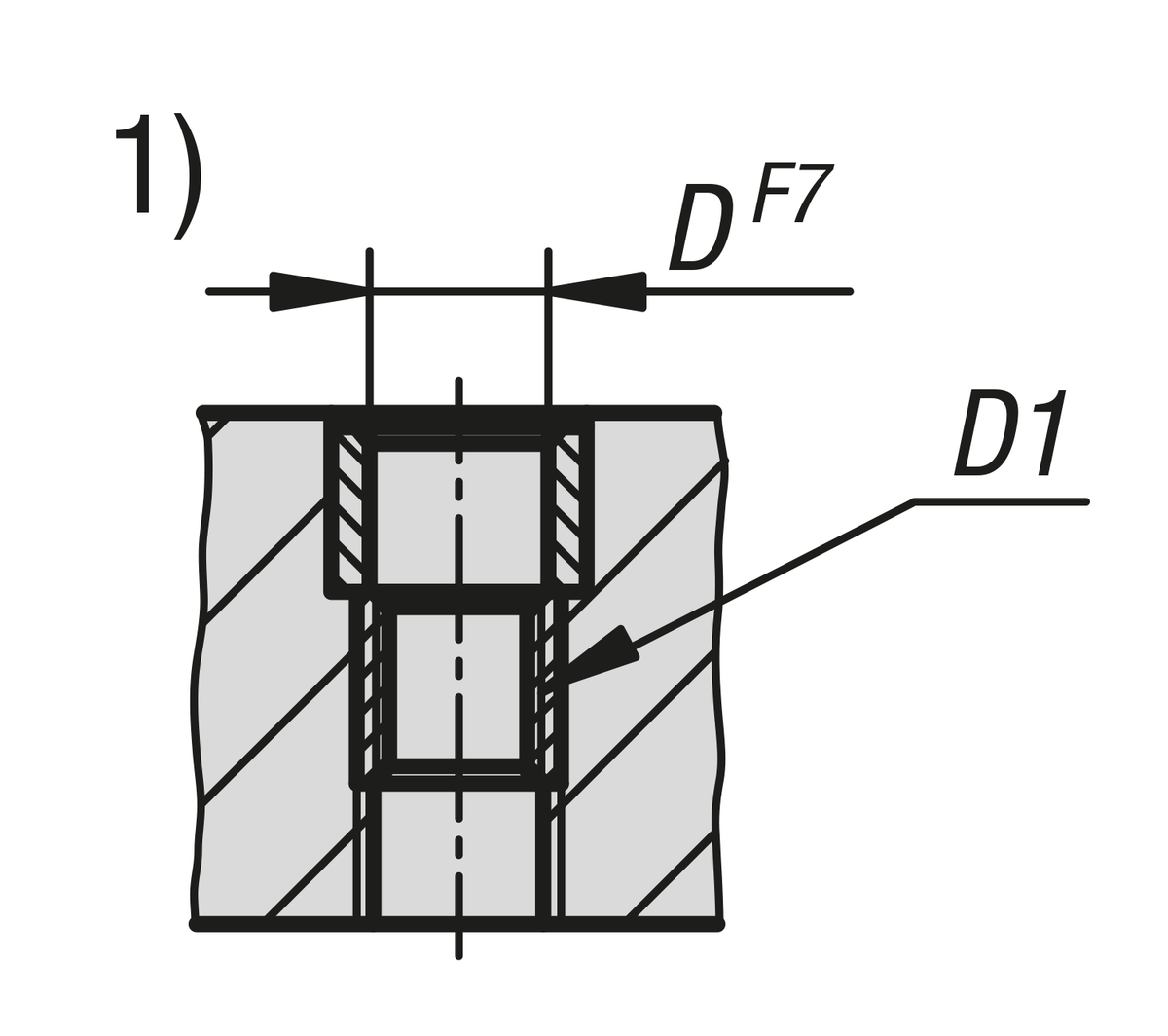

Drawing reference
1) grid hole
2) hole for DIN 912 cap screw, M16
2) hole for DIN 912 cap screw, M16
