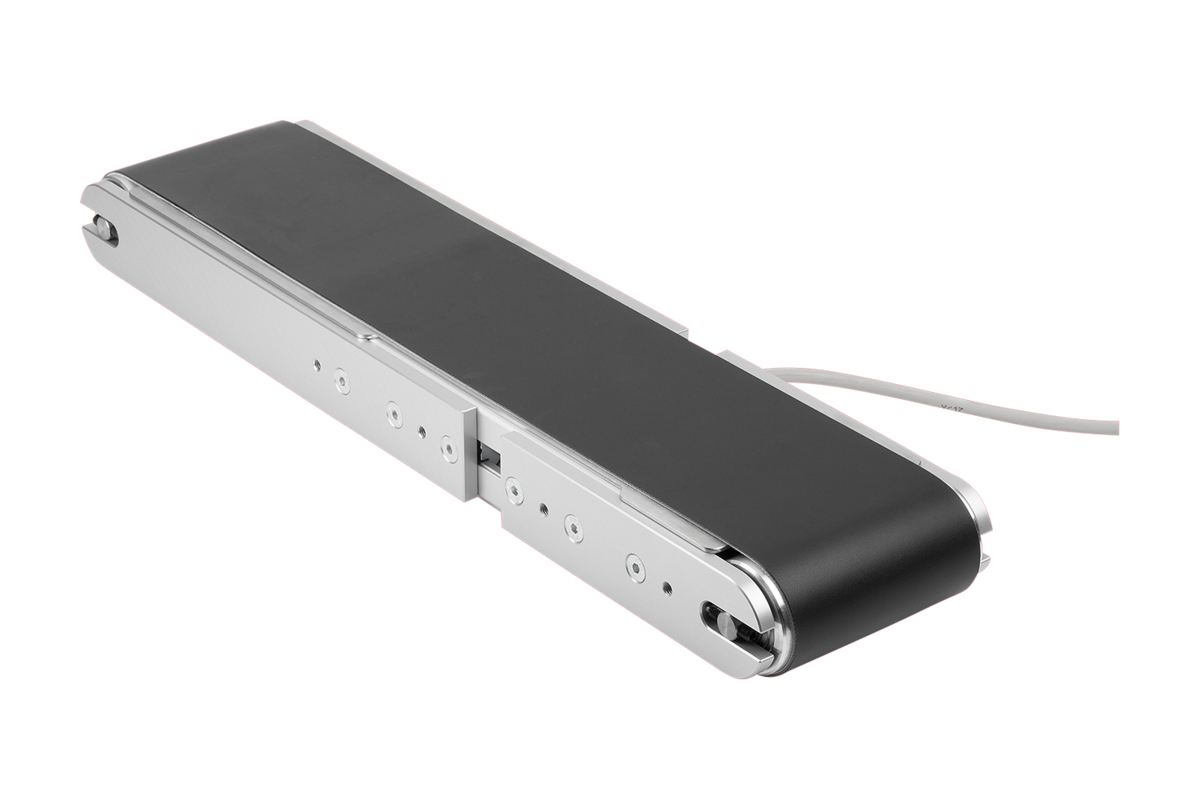

Small conveyor belts with internal drive

  • Minimal installation space, no protruding edges
  • Flexible mounting options with profile system type B
  • Motor externally contollable via control cables
  • Highly durable
  • Integrated control technology
Special features:

from kr22,507.95

plus sales tax
16 results found

Description

Material
Frame aluminium profile 45x45 type B.

Bearing flanges aluminium.

Screws steel.

Belt support stainless steel 1.4301.

Deflector rollers aluminium.

Belt support plate 2 mm VA plate.

Axles stainless steel.

Conveyor belt transport side PVC hardness Shore 70A (±5).
Version
Frame and bearing flanges anodised.
Screws electro zinc-plated.
Note
- internal drive
- 24 V DC electrically commutated, highly durable
- minimum installation space, no protruding edges
- integrated control technology
- widths and lengths in 1 mm increments on request
- flexible mounting options with profile system type B
- motor externally adjustable via control cables
- running side of the conveyor belt fabric polyurethane impregnated (TPU)
- conveyor belt fabric polyester (PET)
- conveyor belt transport side has a smooth surface
Technical Data
- nominal voltage: 24 V
- type power: 30 W
- starting current: 2 A
- motor speed: 5000 rpm
- cable length: 5 m
- conveyor belt thickness: max. 2 mm
- cable outlet: right (standard)

Conveyor belt drive:
- brushless EC motor 24 V, 30 W
- control electronics integrated in conveyor belt
- spur gear transmission
- toothed belt drive underneath conveyor belt
Assembly
Electrical connections/functions (7-wire cable with exposed ends 5 m):

white: +24 V power supply +24 V, protected against polarity reversal
brown: -Gnd power supply -24 V protected against polarity reversal
green: direction switched to Gnd, changes the direction
yellow: disable switched to Gnd, belt stops
grey: brake switched to Gnd, briefly closes the winding, belt brakes
pink: speed 0–5 V speed control from 1.25% to 100% of nominal speed
blue: monitor N digital speed output
- belt width B from 60 to 400 mm
- overall length L from 520 to 2000 mm
- other belt materials
- other transmission ratios
Drawing reference
1) Self-locking setscrew (4x)
2) Slot width 10
3) Aluminium profile 45x45 type B
4) M6 (both sides)
5) Crowned pulley
6) Cable, 7 wire, 5 m
7) Motor control housing
8) Toothed belt profile T5
9) Drive roller, crowned
10) Spur gear transmission
11) Motor 24 V EC (brushless)
