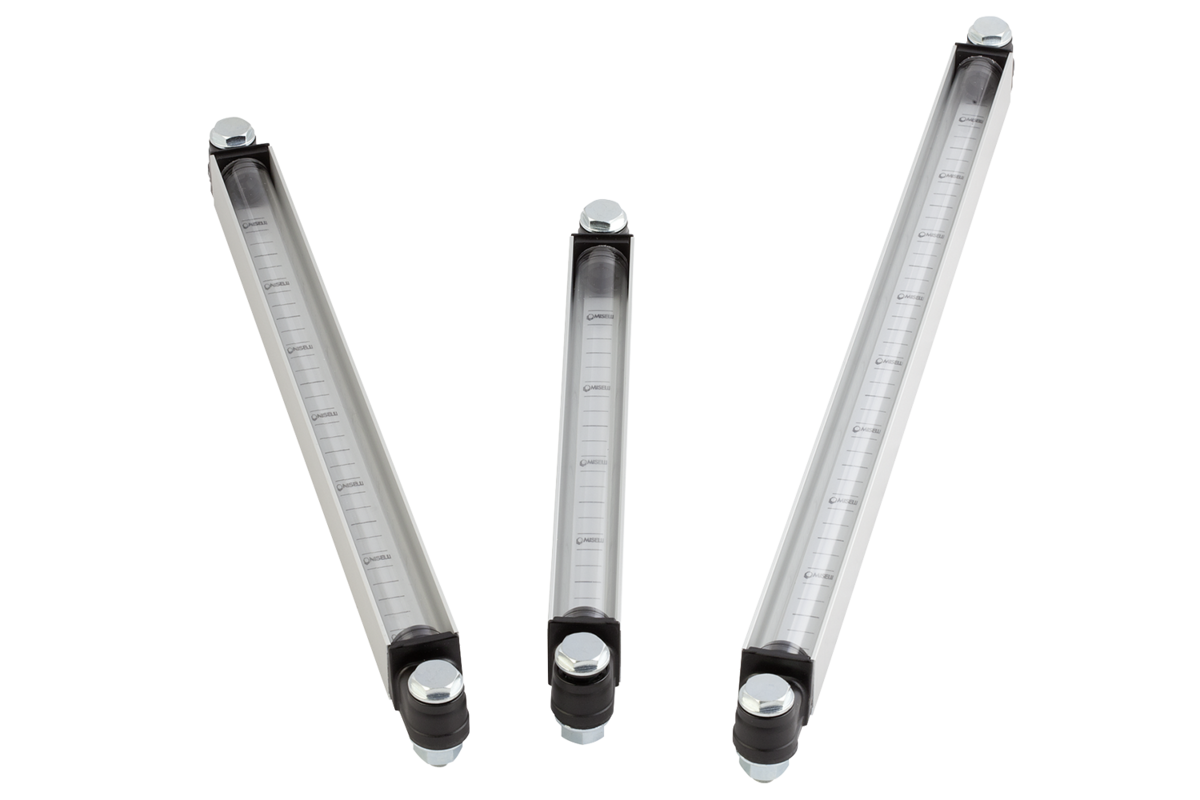

Oil level gauges long version

  • Application sectors: machine, container and vehicle construction
  • High mechanical strength
  • Ageing resistant
  • Temperature resistant to 90°C
Special features:

from kr294.12

plus sales tax


Housing aluminium.
Tube polycarbonate.
Caps polyamide.
O-ring and flat seal NBR, Shore 70.
Screw and hex. nut steel.
Viewing glass transparent.
Screws and nuts electro zinc-plated.

The oil level gauges can either be fastened as shown in the illustration or directly in the tapped hole. Centre distance for the fastening holes = L1±0.3. The maximum operating temperature is 90 °C. The maximum pressure is 1 bar. The maximum tightening torque of the fastening screws is 5 Nm.
Drawing reference
1) flat seal
2) O-ring
