Homepage
Machine and plant construction
23000
Clamping sets (shaft-hub)
Keyless locking couplings Form H for high torques
23362

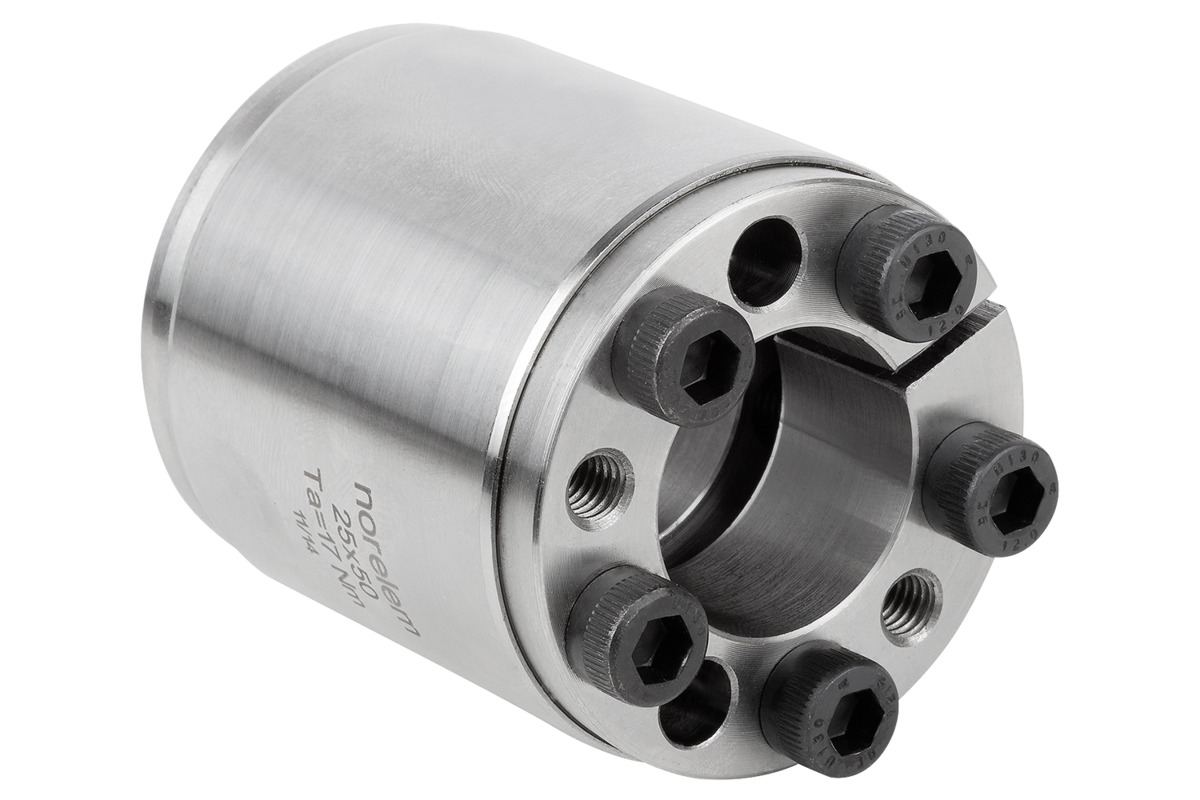

Keyless locking couplings Form H for high torques
For very high torques
For shaft diameter from 25 to 85 mm
Recessed mounting possible
Self-centring
Datasheet
from kr192.91
plus sales tax
plus shipping costs
Added to your shopping cart
Add to cart
Please select Article
Article
Designation
Please select
Keyless Locking Coupling (17)
Body material
Please select
steel (17)
D1=Outside diameter
Please select
55 (3)
60 (1)
65 (2)
75 (2)
80 (2)
85 (1)
90 (1)
95 (1)
110 (1)
115 (1)
120 (1)
125 (1)
D=Internal diameter
Please select
25 (1)
28 (1)
30 (1)
35 (1)
38 (1)
40 (1)
42 (1)
45 (1)
48 (1)
50 (1)
55 (1)
60 (1)
65 (1)
70 (1)
75 (1)
80 (1)
85 (1)
B
Please select
46 (3)
60 (3)
62 (2)
74 (4)
75 (1)
90 (4)
M=Transmissible torque NM
Please select
10950 (1)
11700 (1)
1300 (1)
13750 (1)
1600 (1)
16000 (1)
1680 (1)
2800 (1)
3050 (1)
3700 (1)
3950 (1)
4900 (1)
5900 (1)
6450 (1)
649 (1)
875 (1)
950 (1)
F=Transmissible axial force kN
Please select
64 (3)
135 (2)
155 (2)
193 (2)
313 (2)
84 (2)
174 (1)
344 (1)
375 (1)
74 (1)
P=Surface pressure on shaft
Please select
155 (2)
165 (2)
195 (2)
210 (2)
235 (2)
250 (2)
180 (1)
185 (1)
190 (1)
200 (1)
205 (1)
P=Surface pressure on hub
Please select
95 (5)
110 (4)
100 (2)
90 (2)
105 (1)
115 (1)
75 (1)
80 (1)
Ms=Tightening torque NM
Please select
41 (7)
17 (6)
83 (4)
Filter
17 results found
KEYLESS LOCKING COUPLING, D=25 D1=55, FORM:H STEEL
Item No. 23362-2555
Designation
Keyless Locking Coupling
Body material
steel
D1=Outside diameter
55
D=Internal diameter
25
B
46
M=Transmissible torque NM
649
F=Transmissible axial force kN
64
P=Surface pressure on shaft
155
P=Surface pressure on hub
80
Ms=Tightening torque NM
17
kr192.91
More details
KEYLESS LOCKING COUPLING, D=28 D1=55, FORM:H STEEL
Item No. 23362-2855
Designation
Keyless Locking Coupling
Body material
steel
D1=Outside diameter
55
D=Internal diameter
28
B
46
M=Transmissible torque NM
875
F=Transmissible axial force kN
64
P=Surface pressure on shaft
250
P=Surface pressure on hub
95
Ms=Tightening torque NM
17
kr192.91
More details
KEYLESS LOCKING COUPLING, D=30 D1=55, FORM:H STEEL
Item No. 23362-3055
Designation
Keyless Locking Coupling
Body material
steel
D1=Outside diameter
55
D=Internal diameter
30
B
46
M=Transmissible torque NM
950
F=Transmissible axial force kN
64
P=Surface pressure on shaft
235
P=Surface pressure on hub
95
Ms=Tightening torque NM
17
kr192.91
More details
KEYLESS LOCKING COUPLING, D=35 D1=60, FORM:H STEEL
Item No. 23362-3560
Designation
Keyless Locking Coupling
Body material
steel
D1=Outside diameter
60
D=Internal diameter
35
B
60
M=Transmissible torque NM
1300
F=Transmissible axial force kN
74
P=Surface pressure on shaft
165
P=Surface pressure on hub
75
Ms=Tightening torque NM
17
kr230.85
More details
KEYLESS LOCKING COUPLING, D=38 D1=65, FORM:H STEEL
Item No. 23362-3865
Designation
Keyless Locking Coupling
Body material
steel
D1=Outside diameter
65
D=Internal diameter
38
B
60
M=Transmissible torque NM
1600
F=Transmissible axial force kN
84
P=Surface pressure on shaft
165
P=Surface pressure on hub
95
Ms=Tightening torque NM
17
kr257.07
More details
KEYLESS LOCKING COUPLING, D=42 D1=75, FORM:H STEEL
Item No. 23362-4275
Designation
Keyless Locking Coupling
Body material
steel
D1=Outside diameter
75
D=Internal diameter
42
B
62
M=Transmissible torque NM
2800
F=Transmissible axial force kN
135
P=Surface pressure on shaft
250
P=Surface pressure on hub
110
Ms=Tightening torque NM
41
kr314.13
More details
KEYLESS LOCKING COUPLING, D=45 D1=75, FORM:H STEEL
Item No. 23362-4575
Designation
Keyless Locking Coupling
Body material
steel
D1=Outside diameter
75
D=Internal diameter
45
B
62
M=Transmissible torque NM
3050
F=Transmissible axial force kN
135
P=Surface pressure on shaft
235
P=Surface pressure on hub
110
Ms=Tightening torque NM
41
kr333.88
More details
KEYLESS LOCKING COUPLING, D=40 D1=65, FORM:H STEEL
Item No. 23362-4065
Designation
Keyless Locking Coupling
Body material
steel
D1=Outside diameter
65
D=Internal diameter
40
B
60
M=Transmissible torque NM
1680
F=Transmissible axial force kN
84
P=Surface pressure on shaft
155
P=Surface pressure on hub
95
Ms=Tightening torque NM
17
kr277.13
More details
KEYLESS LOCKING COUPLING, D=50 D1=80, FORM:H STEEL
Item No. 23362-5080
Designation
Keyless Locking Coupling
Body material
steel
D1=Outside diameter
80
D=Internal diameter
50
B
74
M=Transmissible torque NM
3950
F=Transmissible axial force kN
155
P=Surface pressure on shaft
185
P=Surface pressure on hub
90
Ms=Tightening torque NM
41
kr363.03
More details
KEYLESS LOCKING COUPLING, D=48 D1=80, FORM:H STEEL
Item No. 23362-4880
Designation
Keyless Locking Coupling
Body material
steel
D1=Outside diameter
80
D=Internal diameter
48
B
75
M=Transmissible torque NM
3700
F=Transmissible axial force kN
155
P=Surface pressure on shaft
195
P=Surface pressure on hub
90
Ms=Tightening torque NM
41
kr363.03
More details
KEYLESS LOCKING COUPLING, D=55 D1=85, FORM:H STEEL
Item No. 23362-5585
Designation
Keyless Locking Coupling
Body material
steel
D1=Outside diameter
85
D=Internal diameter
55
B
74
M=Transmissible torque NM
4900
F=Transmissible axial force kN
174
P=Surface pressure on shaft
190
P=Surface pressure on hub
100
Ms=Tightening torque NM
41
kr363.03
More details
KEYLESS LOCKING COUPLING, D=60 D1=90, FORM:H STEEL
Item No. 23362-6090
Designation
Keyless Locking Coupling
Body material
steel
D1=Outside diameter
90
D=Internal diameter
60
B
74
M=Transmissible torque NM
5900
F=Transmissible axial force kN
193
P=Surface pressure on shaft
195
P=Surface pressure on hub
100
Ms=Tightening torque NM
41
kr418.42
More details
KEYLESS LOCKING COUPLING, D=65 D1=95, FORM:H STEEL
Item No. 23362-6595
Designation
Keyless Locking Coupling
Body material
steel
D1=Outside diameter
95
D=Internal diameter
65
B
74
M=Transmissible torque NM
6450
F=Transmissible axial force kN
193
P=Surface pressure on shaft
180
P=Surface pressure on hub
95
Ms=Tightening torque NM
41
kr461.37
More details
KEYLESS LOCKING COUPLING, D=75 D1=115, FORM:H STEEL
Item No. 23362-75115
Designation
Keyless Locking Coupling
Body material
steel
D1=Outside diameter
115
D=Internal diameter
75
B
90
M=Transmissible torque NM
11700
F=Transmissible axial force kN
313
P=Surface pressure on shaft
200
P=Surface pressure on hub
105
Ms=Tightening torque NM
83
kr621.98
More details
KEYLESS LOCKING COUPLING, D=70 D1=110, FORM:H STEEL
Item No. 23362-70110
Designation
Keyless Locking Coupling
Body material
steel
D1=Outside diameter
110
D=Internal diameter
70
B
90
M=Transmissible torque NM
10950
F=Transmissible axial force kN
313
P=Surface pressure on shaft
210
P=Surface pressure on hub
110
Ms=Tightening torque NM
83
kr583.32
More details
KEYLESS LOCKING COUPLING, D=80 D1=120, FORM:H STEEL
Item No. 23362-80120
Designation
Keyless Locking Coupling
Body material
steel
D1=Outside diameter
120
D=Internal diameter
80
B
90
M=Transmissible torque NM
13750
F=Transmissible axial force kN
344
P=Surface pressure on shaft
205
P=Surface pressure on hub
110
Ms=Tightening torque NM
83
kr663.16
More details
KEYLESS LOCKING COUPLING, D=85 D1=125, FORM:H STEEL
Item No. 23362-85125
Designation
Keyless Locking Coupling
Body material
steel
D1=Outside diameter
125
D=Internal diameter
85
B
90
M=Transmissible torque NM
16000
F=Transmissible axial force kN
375
P=Surface pressure on shaft
210
P=Surface pressure on hub
115
Ms=Tightening torque NM
83
kr716.24
More details
Filter
Description
Material
Steel.
Version
Bright.
Note
Keyless locking coupling for extremely high torques.
- for shaft diameters from 25 to 85 mm
- for high torques
- minimum axial offset when mounting
- self-centring
Assembly
Lightly oil keyless locking coupling on the tapered faces and contact points of the shaft and hub. Do not use MoS2 or grease. Insert keyless locking coupling in the hub seat and slide onto shaft. Tighten screws crosswise in several increments to the defined tightening torque.
Dismantling: Remove all screws and screw into the extraction threads of the front flange. Tighten screws crosswise in several steps until the keyless locking coupling loosens.
Tolerances
Shaft:
Recommended tolerance h8.
Surface quality Rz ≤ 16 µm.
Hub:
Recommended tolerance H8.
Surface quality Rz ≤ 16 µm.
Details
CAD
Accessories
