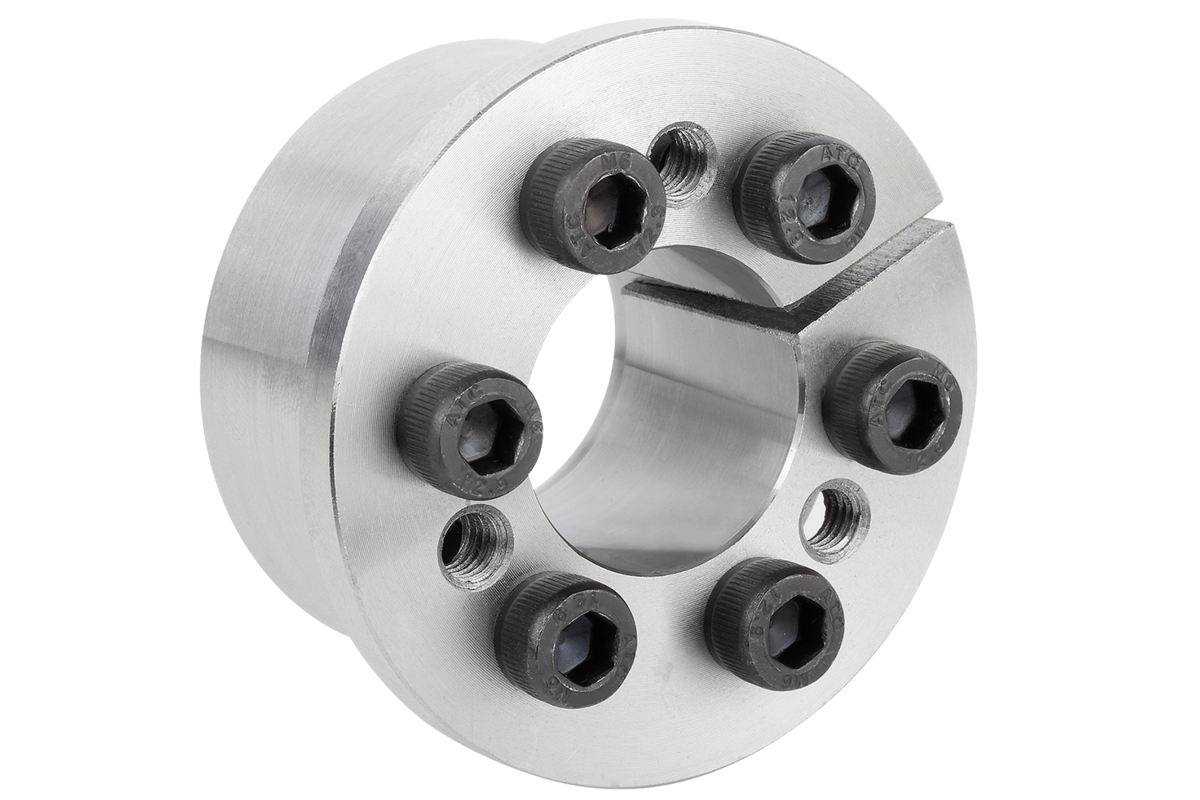

Keyless locking couplings Form F short version with axial ring

  • For medium to high torques
  • No axial shift
  • For shaft diameter from 19 to 85 mm
  • Self-centring

from kr87.36

plus sales tax
  • 1(current)
  • 2
22 results found
  • 1(current)
  • 2

Description

Material
Steel.
Version
Bright.
Note
Keyless locking coupling with short axial width.

- for shaft diameters from 19 to 85 mm
- for medium to high torques
- no axial offset when mounting
- self-centring

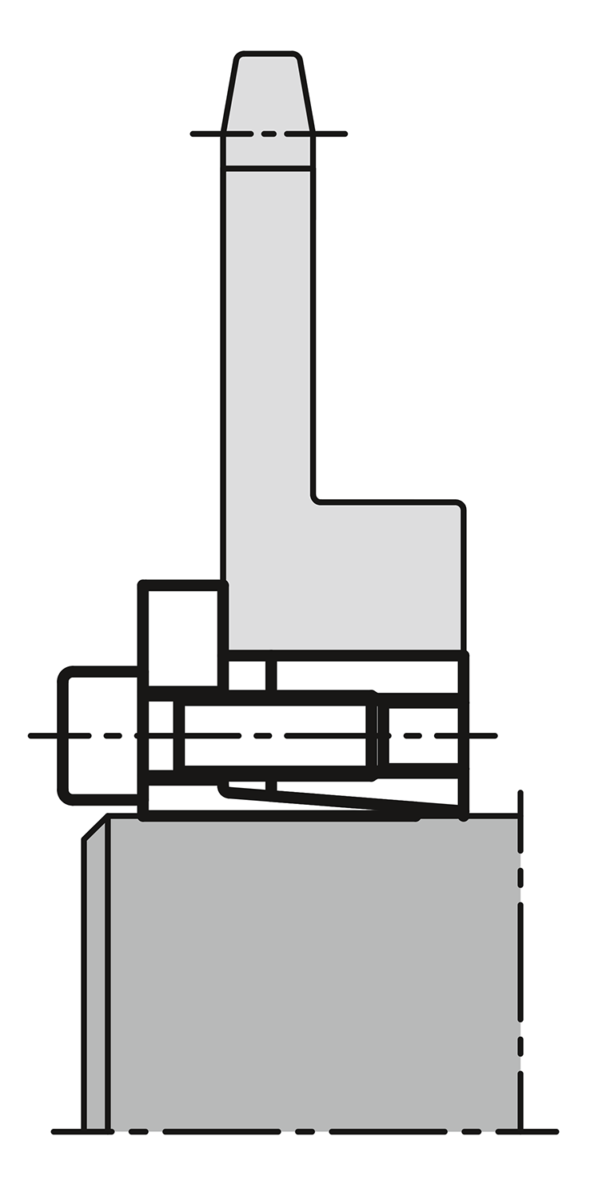

Assembly
Lightly oil keyless locking coupling on the tapered faces and contact points of the shaft and hub. Do not use MoS2 or grease. Insert keyless locking coupling in the hub seat and slide onto shaft. Tighten screws crosswise in several increments to the defined tightening torque.

Dismantling: Remove all screws and screw into the extraction threads of the front flange. Tighten screws crosswise in several steps until the keyless locking coupling loosens.
Tolerances
Shaft:
Recommended tolerance h8.
Surface quality Rz ≤ 16 µm.

Hub:
Recommended tolerance H8.
Surface quality Rz ≤ 16 µm.
